What's this?

  • This is See-through display type Glass Device which is made by all Maker-Style like Google Glass. But this has some restrictions.

Restrictions

Functions

  • See-Through Display
  • Gesture Controlling System
    • Take pictures
    • Show pictures

Making Rules

  • Hardware
    • Handmade with desktop fabrication
    • Buy from D.I.Y shop or Amazon
  • Software
    • Use Open Source Software

Desktop Fabrication

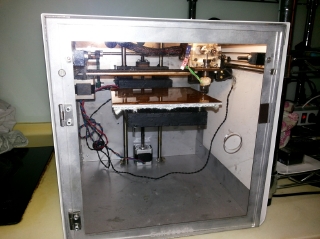

  • 3D Printer

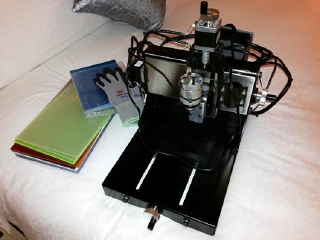

  • CNC Milling Machine

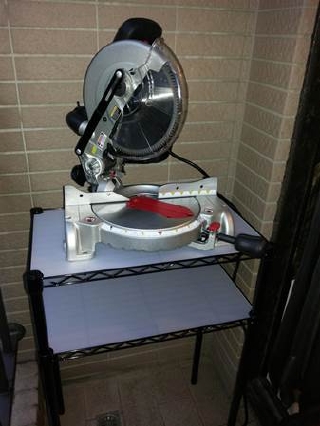

  • Miter Saw

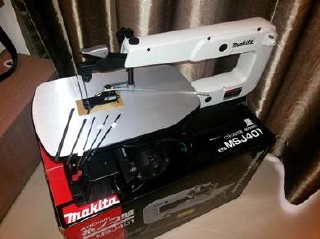

  • Jig Saw
  • Fab on kitchen

The items to prepare

Hardware

Software

Materials

Presentation

Source code & Binary

  • Coming Soon

Contact us

  • info (at) siprop (dot) org

Speech & Show demonstration

Demonstration

Media

Referred

Contact us

  • info (at) siprop (dot) org

How To Make

See-Through Display

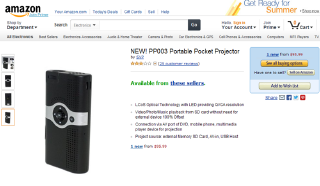

  • Mini-Projecter for SmartPhone?

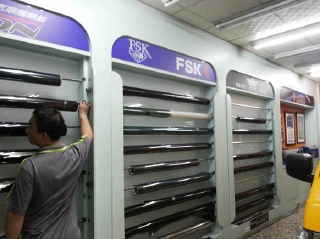

  • Half-Mirror type Sun Shielding Film
    • as Screen for See-Throuhgh from D.I.Y Shop.

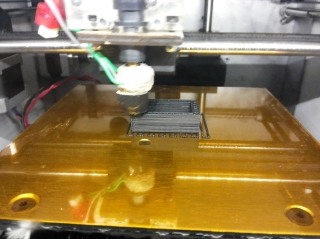

  • Parts from 3D Printer

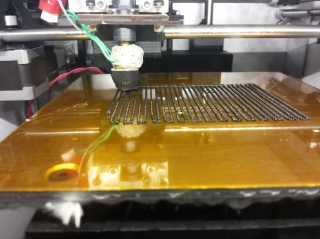

    • Handmade by 3D Printer

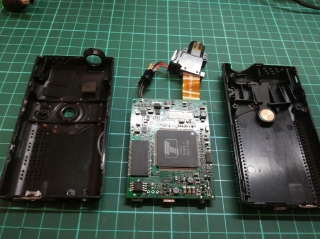

Disassenbly Projector

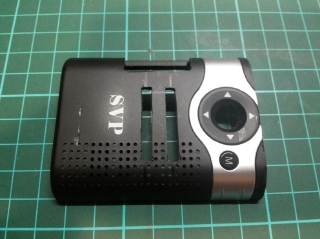

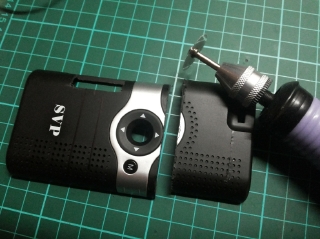

  • Cut Projector Cover to Match Size

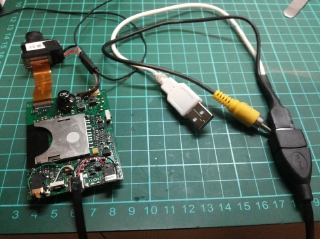

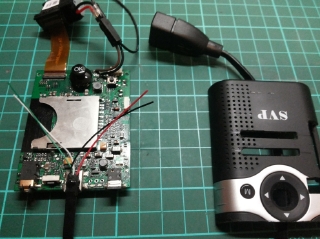

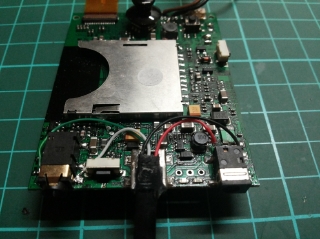

Connect Powor Cable & RCA Cable as USB

  • Change to thin cable

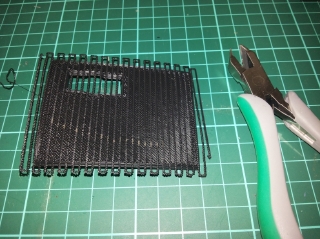

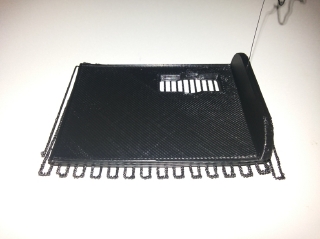

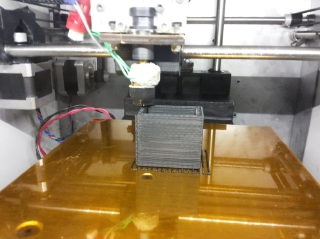

Make a new back cover by 3D Printer

  • The original back cover has a battery.

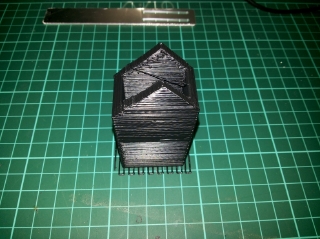

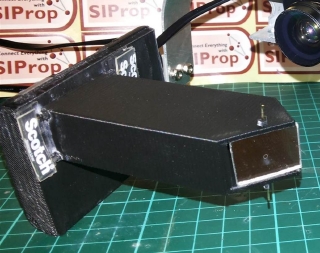

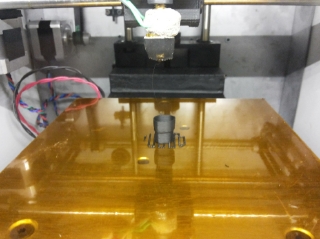

Make a focus tube by 3D Printer

  • This projector's screen size is 4 inch. However 4 inch is too big for ocular screen.
    • Change screen size 4 to 1 inch by long tube.

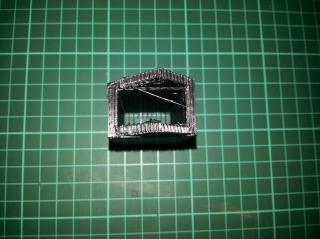

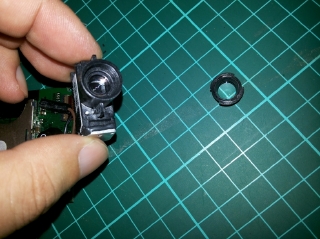

Make a screen cover & Setup the Ocular lens

  • This projector light is very weak & require the ocular lens for very short distance to eye.
    • Make the screen cover by 3D printer
  • Setup the ocular lens

    #ref(): File not found: "projectorlens01.jpg" at page "product/MakerStyleGoogleGlass"

Make a screen by Half-Mirror type Sun Shielding Film and Use Jig Saw

  • A first screen is for for the ocular lens. A second screen is for your eye.

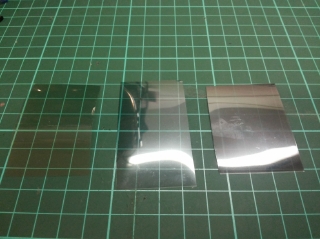

    • 3 kinds of transparency coefficient. 50% for the first screen, 5% for the second screen
    • Setup the first screen for the ocular lens
  • Setup the second screen for your eye

    #ref(): File not found: "projector2ndscreen01.jpg" at page "product/MakerStyleGoogleGlass"

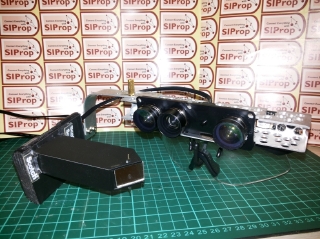

Finish


Gesture System

  • Xtion Pro LIVE
    • Depth Camera like Kinect device
  • ZOOM
    • Short range focus lens for Kinect

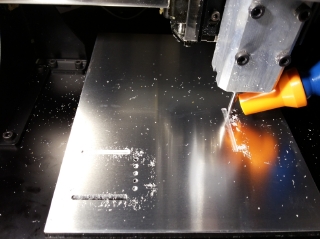

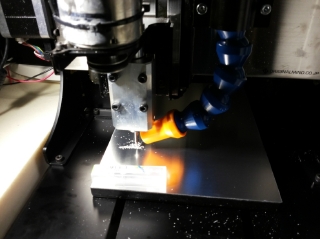

  • Parts from CNC Milling Machine
    • Require high strength parts

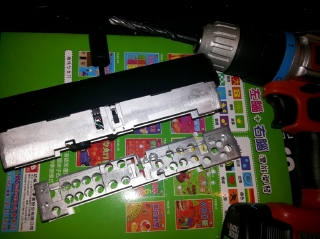

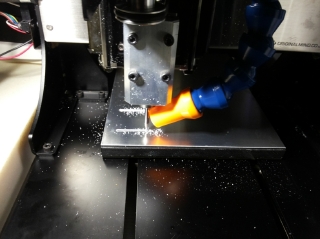

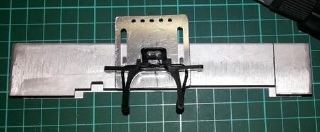

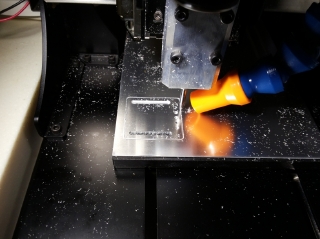

Make a mount system on Glasses

  • Made by aluminium.
    • Xtion is so heavy. Therefore high strength parts.

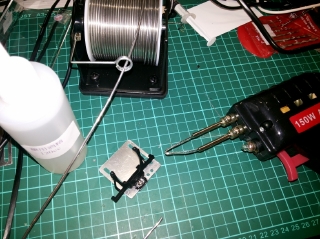

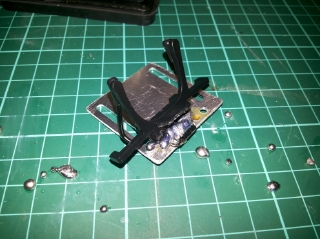

Connect Glasses Clip and Mount Board on Base-Glasses

  • First try is only screw. However screw's mount is very weak.
    • Use soldering Iron as Brazing

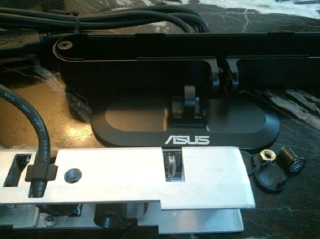

Light Weight-nize

  • Xtion is so heavy.

Mount Short range focus lens for Kinect

  • Put ZOOM on Xtion by glue.

Finish


Setup Linaro/Android & Custom Kernel

  1. Setup Linaro/Android13.03 from binary
    1. Install Linaro Tools
       $ sudo add-apt-repository ppa:linaro-maintainers/tools
       $ sudo apt-get update
       $ sudo apt-get install linaro-image-tools
    2. Get Binaries
      1. boot.tar.bz2
      2. system.tar.bz2
      3. userdata.tar.bz2
    3. Install Linaro/Android to SD Card.
      1. Change /dev/sdX to your SD Card.
        sudo ./linaro-image-tools/linaro-android-media-create --mmc /dev/sdX --dev panda --boot boot.tar.bz2 --system system.tar.bz2 --userdata userdata.tar.bz2
    4. Install graphics libraries
       $ wget http://people.linaro.org/~vishalbhoj/install-binaries-4.0.4.sh
       $ chmod a+x install-binaries-4.0.4.sh
       $ ./install-binaries-4.0.4.sh
  2. Setup USB FS
    1. Edit "/init.rc"

      Add a following line under "on boot"

      mount usbfs none /proc/bus/usb -o devmode=0666

Setup OpenNI

Setup OpenCV

Make original home application on Android

Make a gesture controlling system
